RUNWAY EDGE LIGHTS

Laser Guidance Edge Lights

EL-TH
Threshold Marker

EL-WY
Runway End Warning

EL-WT
Standard Edge

Laser Guidance LED runway threshold lights provide unrivaled performance with unmatched efficiency benefitting in lowest cost of operation, lowest maintenance, and highest reliability. Operating safely on 24V DC and consuming only 10% the power of conventional incandescent units, they reduce substantially the operating cost, eliminate the need for heavy cabling, electrical vaults and isolating transformers. Their low power consumption means they can be solar powered at remote off-grid sites when paired with the custom engineered Solar Power Pod (SPP).

RUNWAY EDGE LIGHTS

Models: WT / WY / TH

Proprietary LED optics acheive lowest power consumtion, variable intensity, and true omni-directional output. Choice of power input. Standard base platter with variable height frangible mounting rod. Exceeds FAA & ICAO standards.

DOWNLOAD PRINTABLE SPECS

SPECIFICATIONS

Optics:

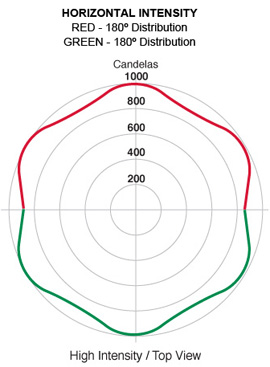

  • WHITE / YELLOW-WHITE / RED-GREEN: L-861 steps 1-3 of 3 MIRL

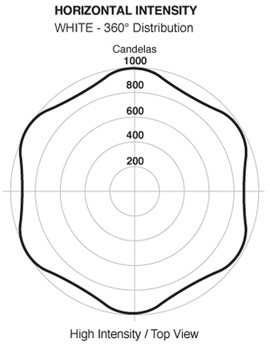

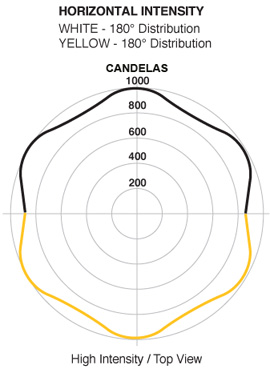

  • Over 650 cd peak; see photometric plots

  • High-power LEDs meet IES LM-100 lumen maintenance, ensuring consistent photometrics for life of product

  • ICAO, SAE25050 (FAA), and FAA EB 67 compliant chromaticity

Power Options:

  • AC ONLY: 100 - 240 VAC 50/60 Hz, 3 & 5 step current input

  • SOLAR POWER POD (SPP): Scalable, off-runway edge for obstruction avoidance

  • HYBRID KIT: Solar Power Pod primary power w/ AC input for backup

  • BATTERY BACKUP KIT: Battery & base can w/ integrated automatic switch controller when AC fails

Control Options:

  • NON-WIRELESS: AC input of 3 & 5 step current, local control

  • WIRELESS: 2.5 mile (4 km) control range with handheld controller

Construction:

  • Premium, UV-resistant acrylic lens

  • Anti corrosion powder coated aluminum components

  • Sealed weatherproof LED lamphead

Temperature:

  • -22 to 131 °F (-30 to 55 °C) ambient

  • -40 to 176 °F (-40 to 80 °C) storage

Shock and Vibration:

  • MIL-STD-202G and MIL-STD-810G

E-static Discharge:

  • FAA-STD-019E, EN 61000-4-2

  • Specifications subject change.

Laser Guidance Edge Light Solar Power PodSolar Power Pod (SPP)

Feeds reliable power to edge light, installed on standard ICAO compliant frangible base 3-4 meters off the runway edge for aircraft safety clearance, connected by buried cable. System conguration is scalable depending on install location and includes solar panel, battery, wireless controller. One SPP required for each light or grouping.


DOWNLOAD PRINTABLE SPECS


SPECIFICATIONS

Energy Collection:

  • High efficiency cells with blocking diodes

  • Maximum power point tracking (MPPT-TC) for optimal energy collection in all solar conditionss

Energy Storage:

  • Pure-lead VRLA Gel battery with manufacturer operating range -85 to 176 °C (-65 to 80 °C)

  • On-board battery status

  • Designed for 5 year battery life; Replaceable and recyclable

Construction:

  • Powder coated aluminum chassis

  • On-board battery status

  • Waterproof vented battery compartment

Temperature:

  • -22 to 131 °F (-30 to 55 °C) ambient

  • -40 to 176 °F (-40 to 80 °C) storage

Shock and Vibration:

  • MIL-STD-202G and MIL-STD-810G

E-static Discharge:

  • FAA-STD-019E, EN 61000-4-2

  • Specifications subject change.
Laser Guidance Solar Power Pod Configuration Drawing

INSTALLATION CONFIGURATION
