SPECIFICATIONS / ROADSTAR & AREASTAR

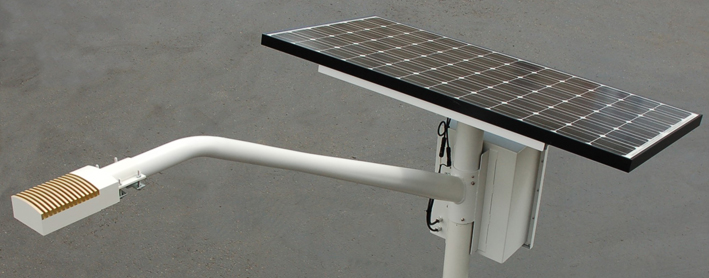

SOLAR LIGHT TREE
- Oversize panel for extra margin charge capacity
- Fully adjustable dual-tilt panel mounting frame
- One piece arm, battery box, pole mount collar
- Sealed AGM lead-acid battery
- Tamper resistant battery box
- Durable powder coat paint finish

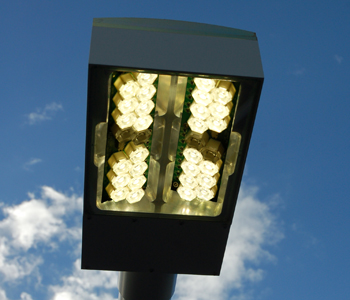

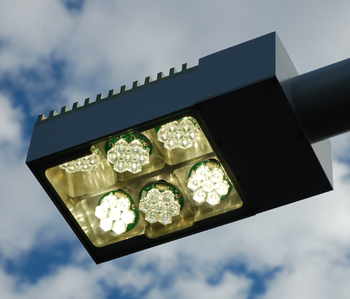

LAMPHEADS
- Maintenance free LED reliability
- Cast aluminum lamphead with Alodine® coating for corrosion resistance
- Durable powder coat finish
- 42W or 84W operation
- Powered by solar, grid, or grid/battery backup
- Manufactured in the USA
- 2 year warranty
- Model >
- LED light source
- LED luminous efficiency
- Total power consumption
- Lamp rated luminous flux
- Illumination
- Color temperature
- Beam angle
- Light distribution pattern
- Input voltage
- Solar panel output
- Solar panel size
- Battery Rating
- Storage temperature
- Working environment
- Lamp body material
- Optical lens material
- Working lifespan
- Guarantee
- IP rating
- Weight (Lamp head only)
- Product size (Lamp head only)
- RoadStar 350
- 42 in 6 rosettes
- 110 lm/w typ
- 42 W
- 4620 lm
- 20 lux @ 13 meters
- 3500K - 4500K
- 72 x 12 deg.
- Rectangular pattern
- 12VDC
- 190 W
- 157.5 x 79.75 x 4.5 cm
- 198 Ah
- -40 - +135 °C
- -55 - +65 °C
- Cast aluminum
- Glass
- > 50,000 Hours
- 2 years
- IP65
- 2.8 Kg.
- 305 x 130 x 65 mm
- RoadStar 700
- 42 in 6 rosettes
- 110 lm/w typ
- 84 W
- 9240 lm
- 20 lux @ 20 meters
- 3500K - 4500K
- 72 x 12 deg.
- Rectangular pattern
- 12VDC
- 300 W
- 166 x 79.75 x 4.5 cm
- 256 Ah
- -40 - +135 °C
- -55 - +65 °C
- Cast aluminum
- Glass
- > 50,000 Hours
- 2 years
- IP65
- 2.8 Kg.
- 305 x 130 x 65 mm
- AreaStar 350
- 32 in 4 aligned clusters
- 110 lm/w typ
- 42 W
- 4620 lm
- 20 lux @ 13 meters
- 3500K - 4500K
- 72 x 12 deg.
- Rectangular pattern
- 12VDC
- 190 W
- 157.5 x 79.75 x 4.5 cm
- 198 Ah
- -40 - +135 °C
- -55 - +65 °C
- Cast aluminum
- Glass
- > 50,000 Hours
- 2 years
- IP65
- 2.8 Kg.
- 305 x 130 x 65 mm
- AreaStar 700
- 32 in 4 aligned clusters
- 110 lm/w typ
- 84 W
- 9240 lm
- 20 lux @ 20 meters
- 3500K - 4500K
- 72 x 12 deg.
- Rectangular pattern
- 12VDC
- 300 W
- 166 x 79.75 x 4.5 cm
- 256 Ah
- -40 - +135 °C
- -55 - +65 °C
- Cast aluminum
- Glass
- > 50,000 Hours
- 2 years
- IP65
- 2.8 Kg.
- 305 x 130 x 65 mm
