ORION LED CORN COB LIGHT / SPECIFICATIONS

Direct replacement for inefficient older type lamps in cobrahead shrouds.

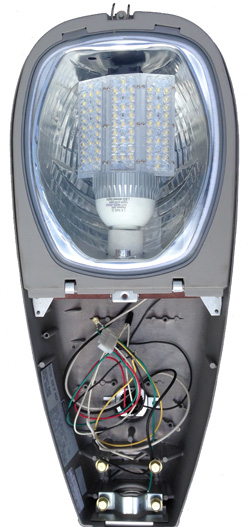

Typical cobrahead shroud with service panel opened to show where the ballast and starter components have been removed, reducing unit weight and eliminating the maintenance liability of those obsolete parts.

Laser Guidance branded line of LED 'corn-cob' design lamps provide the maintenance-free efficiency of LEDs in a simple upgrade to existing installed cobrahead infrastructure at substantial savings over buying complete replacement units.

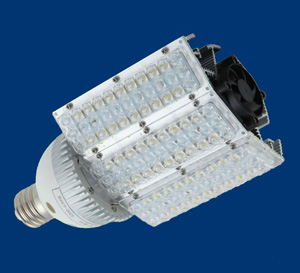

Models: ORION 30W / 50W / 80W

A range of output options available to match your specific requirements. Laser Guidance inspection program ensures consistent production quality backed by our full replacement warrany against defects.

DOWNLOAD PRINTABLE SPECS

SPECIFICATIONS

Model:

  • ORION 30W
    Output: 3000-3300 Lumens
    Dimensions: 105 x 265 mm / Wt: 1.2 kg

  • ORION 50W
    Output: 4500-4750 Lumens
    Dimensions: 150 x 275 mm / Wt: 1.5 kg

  • ORION 80W
    Output: 7200-7920 Lumens
    Dimensions: 150 x 288 mm / Wt: 1.6 kg

Lamp Socket:

  • E40 / E39 / E27 / E26

Construction:

  • Aluminum Alloy

Input Voltage:

  • AC 85V-277V / DC 12V-24V / 50-60HZ

Harmonic Distortion:

  • < 9%

Power Factor:

  • > .95

Power Efficiency:

  • > 89%

Lamp Efficiency:

  • > 95%

Illum Uniformity:

  • > 89%

Lamp Efficiency:

  • > 95%

Color Temperature:

  • Warm White 2700-3000K
    Pure White 4000-4500K
    Cold White 5700-6300K

Color Render Index:

  • > 80ra

Beam Angle:

  • 130°

Junction Temp:

  • -40° - +50°C

Working Life:

  • 50,000 hrs

Bulb Retro-fit Type:

  • HID / HPS / CFL / MHL


  • Specifications subject to change.
